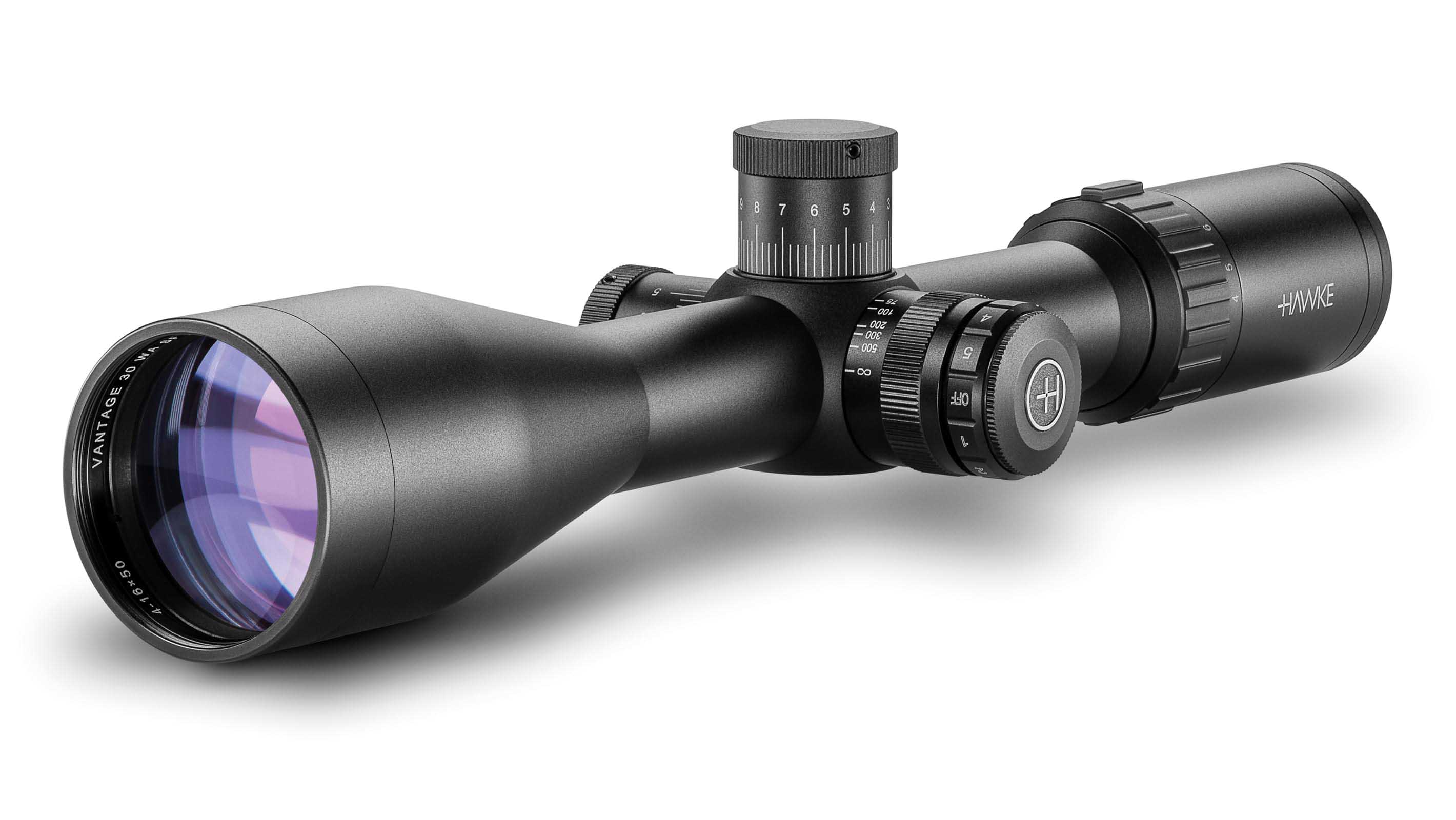

Vantage 30 WA SF IR 4-16x50 Rimfire .17 HMR

Model: 14294
Barcode/EAN: 5054492142941

Availability



No stock, delayed despatch

€519.00
Hawke Logo - Roundal

Vantage 30 WA SF IR 4-16x50 Rimfire .17 HMR

BUY NOW
Modello:  14294
EAN:  5054492142941

An extensive range of scopes to suit all calibres and disciplines.

All Vantage riflescopes feature our H2 optics in a variety of configurations.

IR models feature precision glass etched reticles with multi-stage illumination in both red and green.

  • Exposed Locking Turrets
  • 30mm Mono-tube chassis
  • Wide Angle
  • Side Focus
  • Illumination
  • 11 layer Fully Multi-Coated lenses
  • High torque zoom ring
  • Fast focus eyebell

Nitrogen purged. Shockproof. Waterproof. Fog proof.

All calibre rated.

Hawke No-Fault Lifetime Warranty.


Length:
347mm
13.7"
Weight:
740g
26.1oz
Eye relief:
90mm
3.5"
Focus/Parallax - Side Focus
9m - ∞
10yds - ∞
Field of View:
9.6 - 2.6m @100m
28.8 - 7.8ft @100yds
Exit Pupil:
12.5-3.1mm
0.49-0.12"
Chassis
30mm Mono-tube
Optical System
4-16x
Objective
50mm
Illumination
Red / Green
Reticle
Rimfire .17 HMR
Elevation Increment
1⁄4 MOA
Elevation Adjustment Range:
96 MOA
Windage Increment
1⁄4 MOA
Windage Adjustment Range
96 MOA
Material
Aluminium
Ocular Type
Fast Focus
Lens Coating
Fully Multi-Coated - 11 Layers
Power Selector Style
Knurled Posi-Grip
Focal Plane
Second Focal Plane (SFP)
Turret Caps
No
Turret Type
Exposed, Locking
Line Drawing
  • SUPPLIED WITH
  • Box
  • Instruction Manual
  • Riflescope Alignment Booklet
  • Lens Covers
  • Lens Cloth
Product Type  Riflescope
Product Range  Vantage 30 WA SF IR
Parallax  Side Focus
Objective Lens  50mm
Reticle  Rimfire .17 HMR (16x)
Magnification  4 - 16x
Optical System  System H2
Focal Plane  SFP (Second Focal Plane)
Scope Tube  30mm
Illumination  5 Levels - Red/Green
Field of View (ft@100yds)  28.8 - 7.8
Field of View (m@100m)  9.6 - 2.6
Field of View (°)  5.5 - 1.5
Eye Relief (in)  3.5
Eye Relief (mm)  90
PX/Focus (yds)  10 - ∞
PX/Focus (m)  9 - ∞
Exit Pupil (mm)  12.5 - 3.1
Exit Pupil (in)  0.49 - 0.12
Weight (oz)  26.1
Weight (g)  740
Length (in)  13.7
Length (mm)  347
Turret Type  Exposed
Turret Caps  N/A
Click Value  1/4 MOA
Elevation Turret Clicks (max)  96 MOA
Windage Turret Clicks (max)  96 MOA
Ocular Type  Fast Focus
Power Selector  Knurled Posi-Grip
Lens Coating  Fully Multi-Coated - 11 Layers
