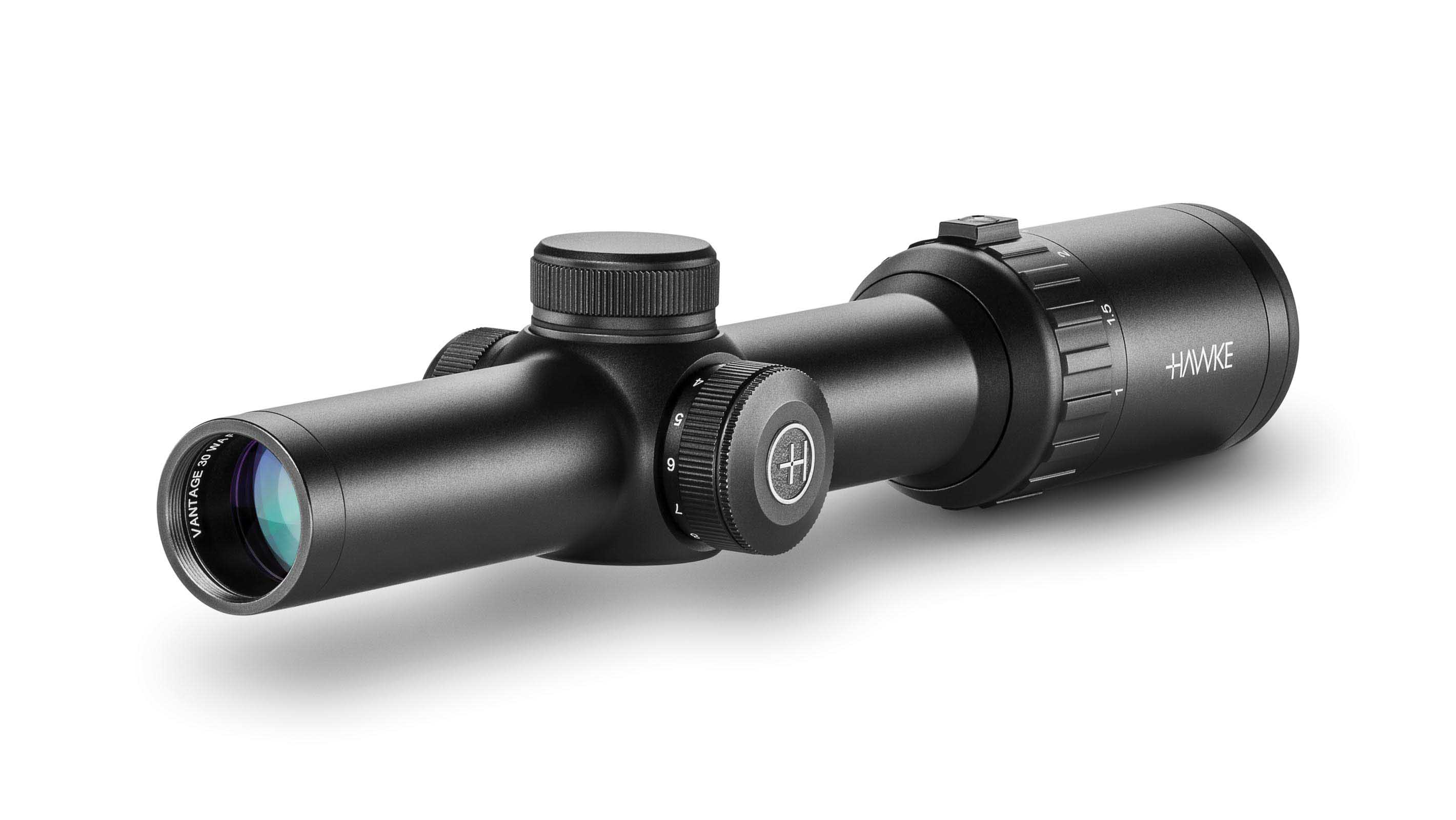

Vantage 30 WA 1-8x24 L4A Fiber Dot

Model: 14510
Barcode: 5054492145102
No stock, delayed despatch
€599.00
SHOP LOCALLY - WHERE TO BUY

Vantage 30 WA 1-8x24 L4A Fiber Dot

Model:
14510
Barcode:
5054492145102
€599.00

An extensive range of scopes to suit all calibres and disciplines.

All Vantage riflescopes feature our H2 optics in a variety of configurations.

The unprecedented Fiber Dot reticles give an intensely bright red illuminated center dot that really can be called daylight bright.

  • Capped Low-Profile Turrets
  • 30mm Mono-tube chassis
  • Wide Angle
  • Fibre Optic Illumination
  • 11 layer Fully Multi-Coated lenses
  • High torque zoom ring
  • Fast focus eyebell
  • Supplied with removable zoom lever

Nitrogen purged. Shockproof. Waterproof. Fog proof.

All calibre rated.

Hawke No-Fault Lifetime Warranty.


  • More Reticle Information
Line Drawing
Product Type
Riflescope
Product Range
Vantage 30 WA FD IR
Parallax
Fixed
Objective Lens
24mm
Reticle
L4A FD
Magnification
1 - 8x
Optical System
System H2
Focal Plane
SFP (Second Focal Plane)
Scope Tube
30mm
Illumination
11 Levels - Red
Field of View (ft@100yds)
115-14.4
Field of View (m@100m)
38.3-4.8
Field of View (°)
21.7–2.7
Eye Relief (in)
3.8
Eye Relief (mm)
97
PX/Focus (yds)
100
PX/Focus (m)
91
Exit Pupil (mm)
24 - 3
Exit Pupil (in)
0.94 - 0.12
Turret Type
Capped
Turret Caps
YES
Click Value
1/2 MOA
Elevation Turret Clicks (max)
210 MOA
Windage Turret Clicks (max)
210 MOA
Ocular Type
Fast Focus
Power Selector
Knurled Posi-Grip with Removable Zoom Lever
Lens Coating
Fully Multi-Coated - 11 Layers
Reticle Group
L4A FD
Length (in)
10.5
Length (mm)
267
Weight (oz)
16.5
Weight (g)
468
  • SUPPLIED WITH
  • Box
  • Instruction Manual
  • Reticle Booklet
  • Lens Covers
  • Lens Cloth
  • Zoom Lever
  • CR2032 Battery

Downloads

Instruction Manual
PDF 2.0MB
