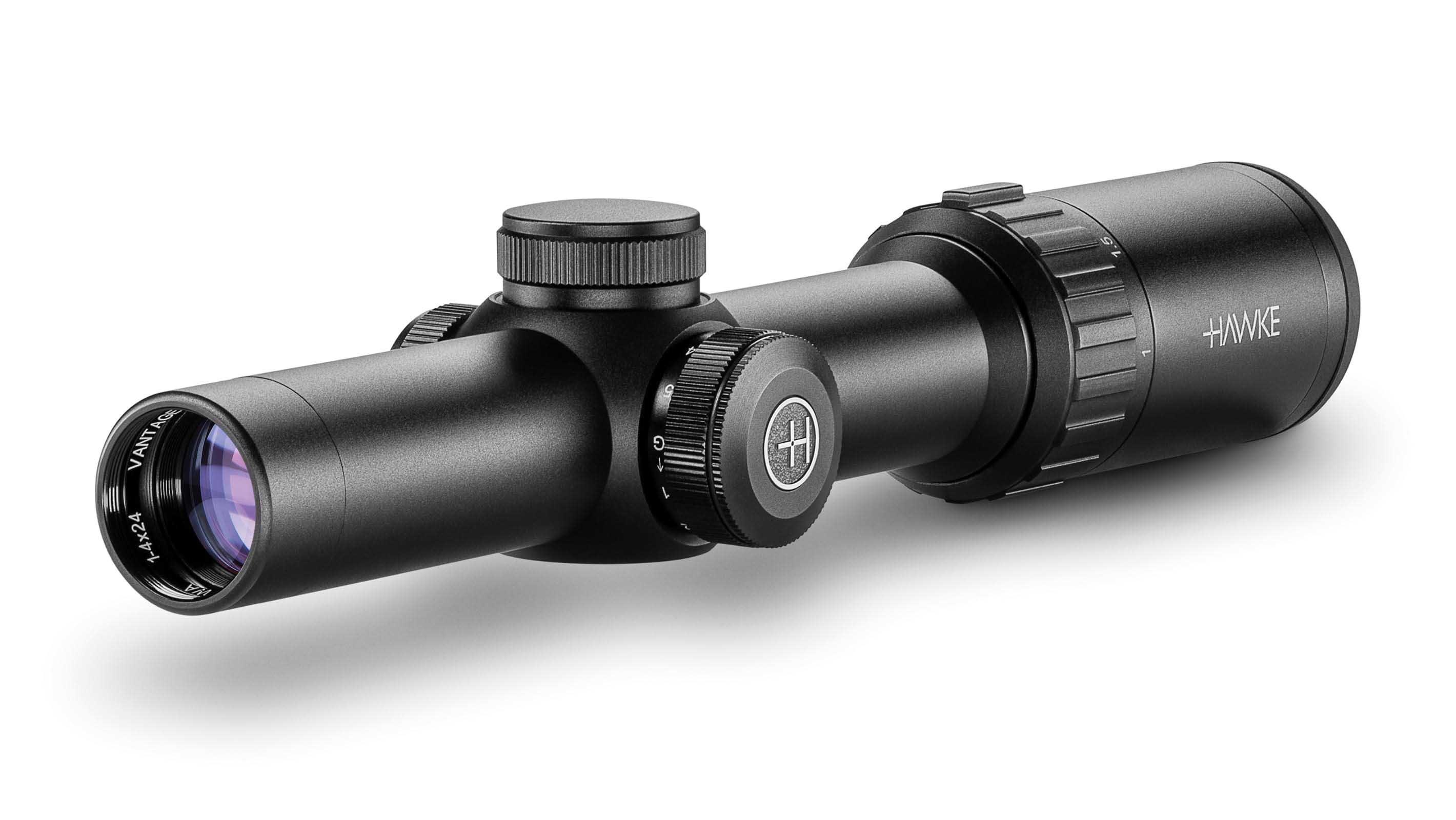

Vantage 30 WA 1-4x24 L4A Dot

Model: 14273
Barcode/EAN: 5054492142736

Availability



No stock, delayed despatch

€349.00
Hawke Logo - Roundal

Vantage 30 WA 1-4x24 L4A Dot

BUY NOW
Modello:  14273
EAN:  5054492142736

An extensive range of scopes to suit all calibres and disciplines.

All Vantage riflescopes feature our H2 optics in a variety of configurations.

IR models feature precision glass etched reticles with multi-stage illumination in both red and green.

  • Capped Low-Profile Turrets
  • 30mm Mono-tube chassis
  • Wide Angle
  • Illumination
  • 11 layer Fully Multi-Coated lenses
  • High torque zoom ring
  • Fast focus eyebell

Nitrogen purged. Shockproof. Waterproof. Fog proof.

All calibre rated.

Hawke No-Fault Lifetime Warranty.


  • More Reticle Information
Line Drawing

  • SUPPLIED WITH
  • Box
  • Instruction Manual
  • Reticle Booklet
  • Riflescope Alignment Booklet
  • Lens Covers
  • Lens Cloth
  • CR2032 Battery
Product Type  Riflescope
Product Range  Vantage 30 WA IR
Parallax  Fixed
Objective Lens  24mm
Reticle  L4A Dot
Magnification  1 - 4x
Optical System  System H2
Focal Plane  SFP (Second Focal Plane)
Scope Tube  30mm
Illumination  5 Levels - Red/Green
Field of View (ft@100yds)  126 - 31.5
Field of View (m@100m)  42 - 10.5
Field of View (°)  24 - 6
Eye Relief (in)  3.5
Eye Relief (mm)  90
PX/Focus (yds)  100
PX/Focus (m)  91
Exit Pupil (mm)  24 - 6
Exit Pupil (in)  0.94 - 0.24
Turret Type  Capped
Turret Caps  YES
Click Value  1/2 MOA
Elevation Turret Clicks (max)  280 MOA
Windage Turret Clicks (max)  280 MOA
Ocular Type  Fast Focus
Power Selector  Knurled Posi-Grip
Lens Coating  Fully Multi-Coated - 11 Layers
Length (in)  10.2
Length (mm)  260
Weight (oz)  14.9
Weight (g)  421
